Best Right Angle Cordless Drill for Tight Joist Bays

The best right angle cordless drill for most people is the ADOTOCAM Brushless Right Angle Drill, because it claims a 3.8-inch front-to-back head and a brushless motor rated at 400 in-lb while running on DeWalt 20V MAX packs you probably already own. If you need to bore 1/2-inch holes through joist after joist, the Milwaukee M18 FUEL HOLE HAWG is the better buy at 7.7 lb.

This category is not for everyone. If your drilling happens in open air on a bench, a standard drill/driver does the job with a longer runtime and a lower price position. The right angle head exists for one reason: the space in front of the chuck is shorter than a normal drill body. Electricians pulling wire through studs, plumbers behind a vanity, cabinet installers screwing into a face frame from inside the box. That's the buyer. Everyone else should put the money into a better impact driver instead.

Best right angle cordless drill at a glance

The buyer profiles these six picks actually fit

I screened these listings by profile rather than by feature count, because a right angle drill is bought to solve one specific access problem. Here's who each pick maps to.

1. You already own DeWalt 20V MAX packs. Three of the six run on them: the ADOTOCAM, the DIYtoolifz and DeWalt's own DCD740B. Your decision is between the two third-party bare tools and the branded one with a 3 Year Limited Warranty.
2. You already own Milwaukee packs. Two picks here are Milwaukee, but on different platforms. The 2415-20 is M12 at 2.25 lb; the HOLE HAWG is M18 at 7.7 lb. They are not interchangeable batteries.
3. You own nothing cordless. Only one of the six ships with cells. The ALLOYPOWER arrives with 2 x 2.0Ah batteries and a charger, which makes it the only pick you can use the day it lands.
4. You bore big holes for a living. That's a 1/2-inch chuck job, and exactly one pick has one.

Two profiles I deliberately did not build sections around: cabinet installers wanting a 1/4-inch hex-only tool, and anyone hunting a corded angle drill. Neither is represented in this set, so promising either would be a blank page.

What decides a right angle cordless drill: head length, not torque

Torque numbers are what the listings shout about. Three of these picks claim 400 in-lb, all with the same phrasing, and every one of them has more twist than a 3/8-inch bit in softwood needs. Torque is not the constraint.

Head length is. A right angle cordless drill earns its price only if the distance from the back of the housing to the tip of the chuck fits the cavity you're reaching into. Standard framing gives you about 14.5 inches clear between 16-inch on-centre studs, which sounds generous until you account for the bit, the drill body and your knuckles.

The published figures split this field cleanly:

• ADOTOCAM and ALLOYPOWER both claim 3.8 inches front to back.
• DeWalt states 4.0 inches for the DCD740B.
• The HOLE HAWG lists a 6.5 x 15.6 x 3.7 in body, a different class of tool entirely.
• Milwaukee's M12 and the DIYtoolifz publish no head-length figure at all.

That 0.2-inch gap between 3.8 and 4.0 inches sounds like nothing. In a stud bay with a spade bit already eating an inch of your clearance, it's the difference between drilling square and drilling at an angle. DeWalt also does something the others don't advertise: a deep hex pocket that swallows a 2-inch hex bit fully into the chuck, which effectively shortens the working length again.

The trick most shoppers miss is that chuck style matters as much as chuck size. A single-sleeve ratcheting chuck can be tightened one-handed while your other arm is jammed inside a wall. Four of these six list one.

1. ADOTOCAM Brushless Right Angle Drill for DeWalt 20V — Best overall

The shortest published head in this set, on the battery platform most home shops already have.

Best for: DeWalt 20V owners drilling between studs and joists Skip it if: you need a self-feed bit or a 1/2-inch chuck

ADOTOCAM takes the top spot on access, which is the only reason this tool category exists. The listing claims a front-to-back length of just 3.8 inches, tying the ALLOYPOWER and undercutting DeWalt's own stated 4.0 inches. It's a bare tool, so it feeds off DCB206, DCB205, DCB204, DCB203, DCB200, DCB181 and DCB182 packs, which covers almost every DeWalt battery bought in the last decade.

The drivetrain is a brushless motor that ADOTOCAM rates at 400 in-lb, or 45 Nm. Two speed ranges are quoted, 0-500 rpm and 0-1900 rpm, with a variable-speed trigger on top. The low range is where a 3/8-inch auger belongs; the high range handles pilot holes and screws. There's a 3/8-inch ratcheting chuck and an LED, and it's the second-cheapest of the six.

The trade-off is thin documentation. ADOTOCAM publishes no weight and no warranty term, where DeWalt states 3.25 lb and a 3 Year Limited Warranty. Only one seller lists it, too, so if something goes wrong your options are narrower than with either Milwaukee.

Pros:

• Shortest published head in this set, 3.8 in
• Runs on eight named DeWalt 20V MAX packs
• Brushless motor with a 400 in-lb claim
• 3/8 in ratcheting chuck plus LED
• Second-cheapest pick here

Cons:

• No published weight figure
• No stated warranty term
• Only one seller lists it
• Battery and charger sold separately

2. Milwaukee 2415-20 M12 12-Volt Lithium-Ion Cordless Right Angle Drill — Runner-up

At 2.25 lb it's the lightest pick here by a wide margin, and the only one with a stated clutch.

Best for: M12 owners who want clutch settings for fasteners Skip it if: you are not on Milwaukee's 12V platform

Weight is the reason this pick sits second. At 2.25 lb it's a full pound under DeWalt's 3.25 lb and about a third of the HOLE HAWG's 7.7 lb. Hold a drill overhead inside a ceiling cavity for twenty minutes and that difference stops being abstract.

It's also the only pick in this set with a published clutch spec: an electronic clutch with 11 settings plus a drill mode. That's what you want when you're driving cabinet screws and cannot see the fastener head. Milwaukee lists a 3/8-inch single-sleeve ratcheting chuck and an extended paddle switch instead of a pistol trigger, which gives you thumb or palm control depending on how your wrist is contorted.

Two real limits. The 2415-20 runs on M12, a 12V platform, so it has less headroom than the 20V and 18V picks when a bit binds in an old joist. And Milwaukee publishes no front-to-back figure, which is the one number that decides this category. The warranty entry reads only "Manufacturer Warranty" with no term attached.

Pros:

• Lightest pick here at 2.25 lb
• Electronic clutch, 11 settings plus drill mode
• Paddle switch works from multiple hand positions
• 3/8 in single-sleeve ratcheting chuck

Cons:

• No published head length
• 12V platform has less headroom than the 20V picks
• Warranty term not stated
• Bare tool, one seller listing

3. DEWALT DCD740B 20-Volt MAX Li-Ion Right Angle Drill — Best for beginners

The only pick here with a warranty term you can actually read: 3 Year Limited.

Best for: first-time buyers who want a published warranty Skip it if: you want the lightest or cheapest option here

If this is your first right angle cordless drill, buy the one with paperwork. The DCD740B is the only pick in this set that publishes a specific warranty term, a 3 Year Limited Warranty, and the only one with full body dimensions listed at 0.94 x 4.87 x 1.77 in. Nothing else here gives you that much to check before you commit.

The specs are honest rather than headline-grabbing. Dual speed ranges of 0-650 rpm and 0-2000 rpm, both slightly higher than the 0-500 and 0-1900 rpm the third-party tools quote. Front-to-back length is stated at 4.0 inches. The 3/8-inch ratcheting chuck has a deep hex pocket that takes a 2-inch hex bit fully inserted, which claws back clearance the 4.0-inch figure gives away. The multi-grip trigger lets you reach the switch from awkward positions.

Two honest losses. At 3.25 lb it's a pound heavier than the M12, and it holds the second-highest price position of the six while offering the same 3/8-inch chuck as the cheapest pick. Battery sold separately, as with most of this set.

Pros:

• 3 Year Limited Warranty, the only stated term here
• Highest top speed in the set, 0-2000 rpm
• Deep hex pocket takes a 2 in bit fully
• Full body dimensions published
• Two sellers list it

Cons:

• 4.0 in head, longer than the 3.8 in claims
• 3.25 lb, a pound over the M12
• Second-highest price position in this set
• No battery or charger included

4. DIYtoolifz Cordless Right Angle Drill Compatible with Dewalt 20V Battery — Best budget pick

The cheapest of the six, with the same 400 in-lb and dual-speed claims as the winner.

Best for: occasional use a few times a year Skip it if: you want the shortest head or a stated warranty

This is the lowest price position in the set, and on paper the claims track the ADOTOCAM almost exactly: a brushless motor rated at 400 in-lb, a 3/8-inch chuck, a 2-speed transmission at 0-500 and 0-1900 rpm, a variable-speed trigger and an LED. It runs on DeWalt 20V packs as a bare tool.

DIYtoolifz does publish one figure the winner doesn't, quoting 3.4 lb for the bare tool. That's heavier than both Milwaukee's M12 and DeWalt's own DCD740B, which is an odd result for a tool this size. It also has three sellers listing it, the widest of any pick here, which usually helps if you need to return it.

Where it loses is the number that matters. There's no published front-to-back head length anywhere in the listing, and no warranty term either. Given that head clearance is the whole reason to buy this shape of drill, buying blind on that spec is a real risk. It's also the slowest seller among the three DeWalt-compatible picks. For a job you do twice a year, that's acceptable. For weekly work, spend up.

Pros:

• Cheapest pick in this set
• Brushless with a 400 in-lb claim
• 3/8 in chuck, 2 speeds, LED
• Three sellers list it, the most here

Cons:

• No published head length, the key spec
• 3.4 lb claim is heavier than both smaller-brand rivals
• No stated warranty term
• Battery and charger sold separately

5. Milwaukee M18 FUEL HOLE HAWG 1/2" Right Angle Drill — Best premium

The only 1/2-inch chuck here, and the only tool in this set built for augers and self-feed bits.

Best for: boring 1/2-inch holes through framing all day Skip it if: the space you work in is a cabinet, not a wall cavity

The HOLE HAWG is a different animal from the other five, and the spec sheet says so plainly. It's a 1/2-inch chuck on a body measuring 6.5 x 15.6 x 3.7 in, weighing 7.7 lb, running on M18 FUEL. Every other pick here is 3/8-inch and compact. This one is built to spin a self-feed bit through a stack of studs without stalling.

The 1/2-inch chuck is the whole argument. Large auger and self-feed bits ship with 1/2-inch or 7/16-inch hex shanks that a 3/8-inch chuck simply will not accept. If your work involves running 2-inch conduit or bundled cable through framing, none of the other five picks can hold the bit, regardless of their torque claims.

The costs are steep. This is the most expensive pick here and the heaviest by 4.3 lb over the DCD740B. At 15.6 inches long it will not fit inside a sink base or a stud bay in the way the 3.8-inch tools do, so it solves overhead and between-joist access rather than genuinely tight access. Milwaukee's listing is also sparse, with a single feature line and a warranty entry that names no term.

Pros:

• Only 1/2 in chuck in this set
• Accepts self-feed and large auger bits
• M18 FUEL brushless drivetrain
• Two sellers list it

Cons:

• Heaviest here at 7.7 lb
• 15.6 in long, so no cabinet or stud-bay access
• Highest price position of the six
• Listing publishes almost no specifications

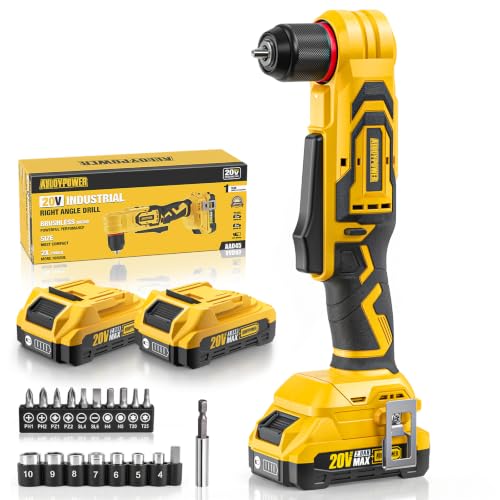

6. ALLOYPOWER 20V Brushless Right Angle Drill — Best for heavy use

The only pick that arrives ready to work: 2 x 2.0Ah batteries and a charger in the box.

Best for: buyers with no cordless batteries at all Skip it if: you already own DeWalt or Milwaukee packs

Five of these six are bare tools. This one isn't. ALLOYPOWER ships the drill with 2 x 2.0Ah batteries and a charger, which is why it lands here as the pick for sustained work: you can rotate packs and keep drilling instead of stopping to recharge a single cell. It sits at a mid price position, third cheapest, and that's before you add the cost of packs to any bare tool above it.

The tool specs mirror the winner's. A brushless motor rated at 400 in-lb, a 3/8-inch ratcheting chuck, a 3.8-inch front-to-back length claim, dual speeds at 0-500 and 0-1900 rpm, a multi-grip variable-speed trigger and a built-in LED for cavity work.

The catch is the platform. Two 2.0Ah packs are modest capacity, and they only fit ALLOYPOWER tools, so you're starting a second battery ecosystem alongside whatever you already own. This is also the slowest seller of the six by a wide gap, and the listing publishes no weight and no warranty term. If you already have DeWalt packs on the shelf, the ADOTOCAM makes more sense.

Pros:

• Only pick including batteries and a charger
• 2 x 2.0Ah packs allow pack rotation
• 3.8 in head claim ties the shortest here
• LED plus 3/8 in ratcheting chuck

Cons:

• Batteries fit no other tool brand
• 2.0Ah is modest capacity
• No published weight or warranty term
• Slowest seller of the six by a wide margin

Which battery platform are you already on?

Platform decides more of this purchase than any spec on the tool. Five of the six picks ship as bare tools, so the real question is which charger is already sitting in your garage.

• DeWalt 20V MAX. Three options. ADOTOCAM names DCB206, DCB205, DCB204, DCB203, DCB200, DCB181 and DCB182 outright. DIYtoolifz and the DCD740B use the same packs.
• Milwaukee M12. One option, the 2415-20, at 2.25 lb.
• Milwaukee M18. One option, the HOLE HAWG. M12 packs do not fit it.
• Nothing yet. One option that solves the problem in a single purchase: the ALLOYPOWER kit with 2 x 2.0Ah batteries and a charger.

The mistake is buying a bare tool because its price position looks attractive, then discovering the pack costs as much as the drill. Add a battery and charger to the DIYtoolifz and it stops being the cheapest thing here.

One more thing worth knowing about third-party compatibility: ADOTOCAM and DIYtoolifz are built to accept DeWalt packs but are not DeWalt products, and neither publishes a warranty term. That's a genuine difference from the DCD740B's 3 Year Limited Warranty, and it's the reason the branded tool remains the safer first buy.

Do you need a 3/8-inch chuck or a 1/2-inch one?

Chuck size is the cleanest fork in this whole set. Five picks are 3/8-inch. One is 1/2-inch.

Go 3/8-inch if your work is twist bits, spade bits up to about an inch, driver bits and screws. That covers running romex through pre-drilled studs, mounting brackets inside cabinets, and plumbing work behind fixtures. All five 3/8-inch picks list a ratcheting or single-sleeve chuck, which you can snug one-handed in a cavity.

Go 1/2-inch only if you're driving self-feed bits or large augers. Those shanks are 1/2-inch or 7/16-inch hex and will not seat in a 3/8-inch chuck at all. That's the HOLE HAWG's job, and the 7.7 lb weight and 15.6-inch length are the price of that capability.

The threshold is roughly the 1-inch hole. Below it, a 3/8-inch tool with a 400 in-lb claim handles the work in a body under 4 inches deep. Above it, no amount of torque helps if the bit won't fit the chuck. Buyers overpay most often by reaching for the big tool "just in case" and then finding it too long for the space they actually needed it in.

What the listings do not tell you

Three of these six publish no weight. Two publish no front-to-back head length, which is the specification the entire category turns on. Four state no warranty term, listing either nothing or a bare "Manufacturer Warranty" with no years attached. Dimension entries are unreliable in places too, with two picks listing a placeholder 1 x 1 x 1 in.

Here's the practical read. Where a figure is missing, assume nothing and check the listing yourself before you buy, because the number that decides fit is the one most often absent. The 3.8-inch and 4.0-inch head claims are the only clearance figures published in this set, and they come from ADOTOCAM, ALLOYPOWER and DeWalt.

Nothing here publishes runtime, noise, chuck runout or a maximum hole capacity in wood. Those get decided by your battery and your bit, not by the drill's marketing copy. Every 400 in-lb figure in this article is the manufacturer's claim, stated in near-identical wording across three separate listings, and worth reading as a class indicator rather than a measurement.

The verdict

Sort this by price tier and the answer falls out fast.

At the entry tier, the ADOTOCAM Brushless Right Angle Drill is the best right angle cordless drill for anyone with DeWalt 20V MAX packs. It claims the shortest head in this set at 3.8 inches, pairs a brushless motor rated at 400 in-lb with a 3/8-inch ratcheting chuck, and costs less than every pick except one. If your budget is tighter still, the DIYtoolifz drops lower, but it publishes no head length, and that's the spec that determines whether the tool fits the space at all.

In the middle tier, two answers depending on what you own. The Milwaukee 2415-20 wins on weight at 2.25 lb and is the only pick with a stated clutch, 11 settings plus drill mode, which makes it the pick for fastening work. If you own nothing cordless, the ALLOYPOWER kit is the only pick that includes 2 x 2.0Ah batteries and a charger.

At the premium tier, spend the money only for capability, not comfort. DeWalt's DCD740B buys you a 3 Year Limited Warranty and 0-2000 rpm in a 3.25 lb body. The Milwaukee HOLE HAWG buys you the 1/2-inch chuck, and nothing else in this set can hold a self-feed bit. Its 7.7 lb weight and 15.6-inch length are what that costs.

FAQ

Is a right angle cordless drill worth buying if I already own a drill/driver?

A right angle cordless drill is worth buying only when your drill/driver physically will not fit. The whole value is head length: 3.8 to 4.0 inches front to back on the compact picks here, against the 7 or 8 inches a standard drill needs. If you work between 16-inch on-centre studs, inside cabinets or behind fixtures, it pays back quickly. Bench work does not need it.

Which is the best value right angle cordless drill in this group?

The best value right angle cordless drill here is the ADOTOCAM, at the second-lowest price position with the shortest published head in the set, 3.8 inches. It matches the 400 in-lb claim, dual 0-500 and 0-1900 rpm speeds and 3/8-inch ratcheting chuck of pricier picks. Factor in that you supply your own DeWalt 20V pack and the total outlay stays low.

What chuck size and speed range should I look for?

Chuck size and speed range go together. A 3/8-inch chuck covers twist bits, spade bits and screws, and five of these six picks have one. A 1/2-inch chuck is required for self-feed and large auger shanks. For speeds, two ranges matter: something near 0-500 or 0-650 rpm for torque, and 1900 to 2000 rpm for pilot holes and fastening.

ADOTOCAM or DEWALT DCD740B: which should I choose?

Choose the ADOTOCAM if head clearance and price come first. It claims 3.8 inches front to back against DeWalt's 4.0 inches, and sits three positions cheaper. Choose the DCD740B if documentation matters: it publishes a 3 Year Limited Warranty, full dimensions of 0.94 x 4.87 x 1.77 in, a 3.25 lb weight and a top speed of 2000 rpm. Two sellers list it, too.

What mistake do first-time buyers make in this category?

The mistake first-time buyers make is chasing torque figures. Three picks here claim 400 in-lb, which is more than a 3/8-inch bit in softwood ever needs, while two of the six publish no head length at all. Buy on the clearance measurement and the chuck size instead. A tool with huge torque that won't fit the cavity has solved nothing.

Measure the tightest space you actually work in before you order anything. Tape measure, back of the housing to bit tip, and compare that number against the 3.8-inch and 4.0-inch figures published here. If your DeWalt packs are already charged, the ADOTOCAM is the sensible default: it makes the smallest access claim in this set, uses a chuck style you can tighten one-handed inside a wall, and asks the least of your budget among the tools that publish a clearance figure at all. Everything else in this group is a specific answer to a specific constraint.
